Power Vent Operation


shutterstock_260970851Power vent tanks are similar in construction to natural draft tanks with one major difference. Power vented hot water tanks also include a fan that pushes the combustion gases out of the exhaust venting. Because no chimney is required, power vented tanks are compatible with today’s high efficiency furnaces that are sidewall vented. All power vented tanks feature electronic ignition that improves energy efficiency. Besides being Energy Star® rated, you will also enjoy the benefit of no chance for back drafting or leakage of combustion gases. This efficient design is an excellent choice for retrofitting a new tank where no chimney exists or when the cost of chimney lining would uneconomical.

Bradford White


Bradford White Residential Power Vent TTW®

Efficiency: 0.67 EF RATING

Description: utilizes power vented exhaust for increased energy efficiency over a standard draft exhaust. Offers greater installation flexibility with the ability to vent through a wall or roof. Decreased waiting time for tank capacity to reach desired temperature for hot water.

Warranty: 6 years on tank itself against leaks. 6 years limited warranty on internal functional parts. 1 year labour warranty and installation guarantee.

Specifications:

  • 67 EF
  • 40 and 50 Gallon capacity available
  • ENERGY STAR®
  • Titanium Stabilized Stainless Steel Propane Burner
  • The Bradford White ICON SystemTM  – Gas control technology that offers numerous energy and time-saving benefits.
  • The Hydrojet®Total Performance System – Reduce sediment build-up
  • Defender Safety System® with Advanced ScreenLok® Technology Flame Arrestor Design

Rheem

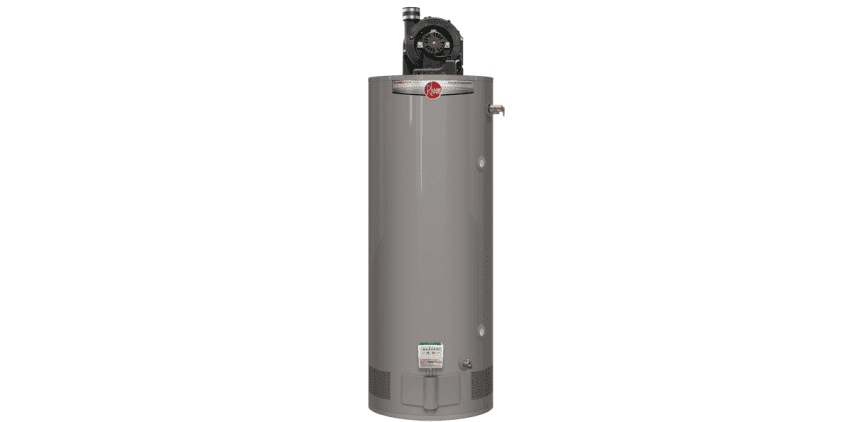

Rheem Professional Classic Plus Power Vent

Efficiency: 0.67 EF RATING, ENERGY STAR® RATED

Description: provides high efficiency performance and upgraded whisper quiet blower for quite operation. An installation of this tank will provide ultimate temperature control that exceeds energy efficiency standards.

Warranty: 6 years on tank itself against leaks. 6 years limited warranty on internal functional parts. 1 year labour warranty and installation guarantee.

Specifications:

  • 67 EF, ENERGY STAR® RATED
  • FHR: 85 gallons for 50 Gallon, 71 gallons for 40 Gallon
  • 40 and 50 Gallon capacity available
  • Eco-friendly burner, low NOx design
  • Everkleen™ patented system fights sediment build-up
  • Rheem exclusive R-Tech (resistored) anode rod provides long lasting tank protection
  • Uses indoor air for combustion; blower exhaust the flue gases
  • Whisper quiet blower
  • Electronic gas control
  • Durable Silicon Nitride Ignitor (HIS)

Contact Us for a quote, to book an appointment, or to ask a question
