Power direct vent operation


shutterstock_113037493Power direct vent hot water tanks also feature a fan to push combustion gases out the exhaust like the power vent tanks. However, the power direct vent tank is also a sealed combustion water heater. What that means is that it draws combustion or fresh air from the outside of your home directly into the combustion chamber for heating. This means that the air in the home is never used for hot water heating, only for your furnace. This design of hot water tank is also ENERGY STAR® rated and is resistant to leakage of combustion gases.

Bradford White


Bradford White Residential Power Vent

Efficiency: 0.70 EF, ENERGY STAR® RATED

Description: A high efficiency solution providing Energy star performance. Power Direct Vent models are the solution to installations that lack sufficient air for combustion and require flexibility. All models can vent vertically or horizontally and are also approved for direct-vent, closed and combustion applications.

Warranty: 6 years on tank itself against leaks. 6 years limited warranty on internal function parts. 1 year labour warranty and installation guarantee.

Specifications:

  • 70 EF
  • 40 and 50 Gallon capacity available
  • Titanium Stabilized Stainless Steel Propane Burner
  • The Hydrojet®Total Performance System – Reduce sediment build-up
  • Vitraglas®Tank ProtectionExclusive enamel lining
  • The Bradford White ICON SystemTM  – Gas control technology that offers numerous energy and time-saving benefits
  • Defender Safety System® with Advanced ScreenLok® Technology Flame Arrestor Design

Rheem

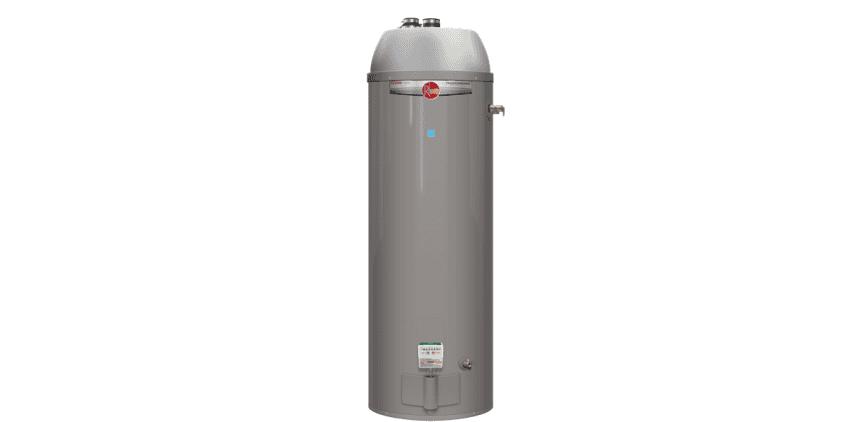

Rheem Professional Classic Power Direct Vent

Efficiency: 0.67 EF, ENERGY STAR® RATED

Description: provides high efficiency performance and uses a two pipe exhaust system. One pipe pulls in outside air for combustion and the other exhausts the combustion gases for closed system operation providing the best performance possible. Also included with this model is an upgraded whisper blower, ensuring quiet performance from this high efficiency appliance.

Warranty: 6 years on tank itself against leaks. 6 years limited warranty on internal function parts. 1 year labour warranty and installation guarantee.

Specifications:

  • 67 EF, ENERGY STAR® RATED
  • FHR: Up to 93 gallons for natural gas
  • 40 and 50 Gallon capacity available
  • Eco-friendly burner, low NOx design
  • Everkleen™ patented system fights sediment build-up
  • Rheem exclusive R-Tech (resistored) anode rod provides long lasting tank protection
  • Two pipe system for combustion and exhaust
  • Whisper quiet blower
  • Electronic gas control
  • Durable Silicon Nitride Ignitor (HIS)
