Single Stage Heating


shutterstock_251868241

Simple, Single Stage, High Efficiency Operation

The single stage furnace is the traditional furnace design of the past as there is only one stage of heating. When your thermostat calls for heat and the furnace turns on, the furnace immediately fires to its single speed. This is like pressing the gas pedal to the floor of your car immediately. Single stage heating operates much like a car in stop and start traffic. This means the same amount of gas and electricity is consumed every time the furnace ignites. A single stage-furnace will do the job in heating your home. However, you will not achieve the comfort levels experienced with a two-stage or modulating furnace.

These types of furnaces work best in smaller homes that do not have many levels and are an economical choice for furnace replacement and upgrading. While the furnace only has one-speed for heating, all are available in high efficiency models featuring AFUE ratings of at least 95%. Enjoy reliable performance with this simple design.

Trane

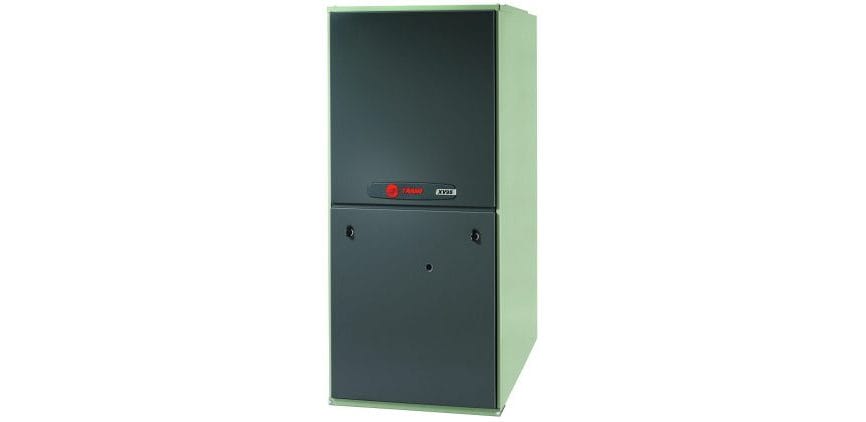

Trane XR95 Gas Furnace

Efficiency: RATED 95% AFUE.

Description: Trane’s highest efficiency in a single-stage performing furnace. Features a four-speed blower motor, which means more energy dollars go toward actually heating your home.

Warranty: 10 years limited parts. Lifetime on heat exchangers. 1 year labour on installation. Optional Extended Manufacturer parts and labour warranty available.

Specifications:

  • 95% AFUE
  • Aluminized steel heat exchanger
  • Three row secondary heat exchanger
  • Direct-drive, multi-speed blower motor
  • Self-diagnostic microelectronic controller
  • Durable silicone nitride hot surface igniter
  • Multi-port, in-shot burners
  • Insulated heavy steel cabinet for quiet operation

Trane XT95 Gas Furnace

Efficiency: RATED 95% AFUE

Description: provides energy-efficient comfort every day of the year. Features a high-efficiency blower motor, providing consistent airflow while operating quietly.

Warranty: 10 years limited parts. Lifetime on heat exchangers. 1 year labour on installation. Optional Extended Manufacturer parts and labour warranty available.

Specifications:

  • 95% AFUE
  • High-efficiency blower motor
  • Self-diagnostic microelectronic controller
  • Durable silicon nitride hot surface igniter
  • Multi-port, in shot burners
  • One-piece heat exchanger with no welds
  • Insulated heavy steel cabinet for quiet operation

Armstrong

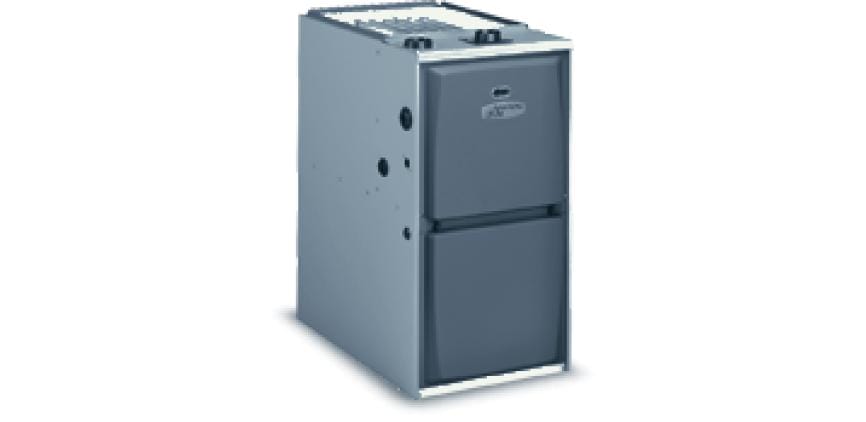

Armstrong A95UH1 Gas Furnace

Efficiency: RATED 95% AFUE

Description: designed to deliver economical warmth, going beyond typical one-stage operation by circulating heat evenly and efficiently. This furnace produces a steady temperature throughout the home, with minimal energy waste.

Warranty: 10 years limited parts. Lifetime on heat exchangers. 1 year labour on installation

Specifications:

  • 95% AFUE
  • Patented EHX Technology to eliminate hot spots
  • Stainless steel heat exchanger
  • Single-speed PSC motor
  • Electronic ignition control
  • Quiet Combustion Technology

Contact Us for a quote, to book an appointment, or to ask a question
